2017 AVENTADOR SV LP750-4 COUPE - USA

Maintenance Parts:

Common repairs and upgrades

PN	Item
900000170	Tutela CS Speed Fluid -Oil Lifting System 1 liter Tutela CS Speed Fluid -Oil Lifting System 1 liter	Avail to order Our Price: $67.89
410860382	STEERING WHEEL COVER STEERING WHEEL COVER WITH CREST LOGO	Current Stock: 2 Our Price: $22.58
4T0803615	TOWING EYE TOWING EYE OLD PN 400803615	Current Stock: 2 Our Price: $48.32

Drivetrain

PN	Item	Diagram
07M115561B	SPIN-ON FILTER CARTUCCIS FIL.OLIO SPIN-ON FILTER CARTUCCIS FIL.OLIO		Avail to order Our Price: $104.15

Fuel-Air

PN	Item	Diagram
470133843A	FILTER ELEMENT FILTER ELEMENT		Current Stock: 1 Our Price: $174.19

Ignition

PN	Item	Diagram
470905619A	SPARK PLUG SPARK PLUG		Avail to order Our Price: $110.70
470905619C	Spark Plug Spark Plug		Avail to order Our Price: $106.98

Misc

PN	Item
6Q0819653B	CABIN FILTER AVENTADOR CABIN FILTER	Current Stock: 2 Our Price: $65.74
400093050D	CTEK US-CD BATTERY CHARGER Input 110-120VAC Output Max 4.3A, 12V Back drain less than 1.5Am/month	Avail to order Our Price: $373.98
0R0000149	CLEANER FLUID 250ml CLEANER FLUID	Current Stock: 1 Our Price: $70.78

Sensors

PN	Item
7PP907275F	WHEEL ELECTRONICS WHEEL ELECTRONICS	Avail to order Our Price: $169.72
4H0959126A	AC PRESSURE SENSOR A/C PRESSURE SENSOR,	Avail to order Our Price: $80.25
06A906262AT	OXYGEN SENSOR O2 SENSOR - LAMBDA PROBE OXYGEN SENSOR O2 SENSOR - LAMBDA PROBE	Current Stock: 24 Our Price: $154.84
4E0927803F	RH ABS SENSOR SPEED SENSOR	Avail to order Our Price: $145.31
4E0927804F	LH ABS SENSOR SPEED SENSOR	Current Stock: 1 Our Price: $145.31

Tools and Tookits

PN	Item
470012257	DEMOUNTING HOOK DEMOUNTING HOOK	Current Stock: 1 Our Price: $253.70
69795000805	V12 VALVE SEALING FITTING TOOL V12 VALVE SEALING FITTING TOOL	Avail to order Our Price: $359.54
69195290	TOOL KIT FOR REMOVING THE GRILLE TOOL KIT FOR REMOVING THE GRILLE BUMPER NET TOOL	Avail to order Our Price: $393.04
61195080	TOOL FOR TOP DEAD CENTER LP700 TOP DEAD CENTER GAUGE. TOOL FOR TOP DEAD CENTER LP700	Avail to order Our Price: $260.54

Open All

Select Group and TAV

< Previous Next >

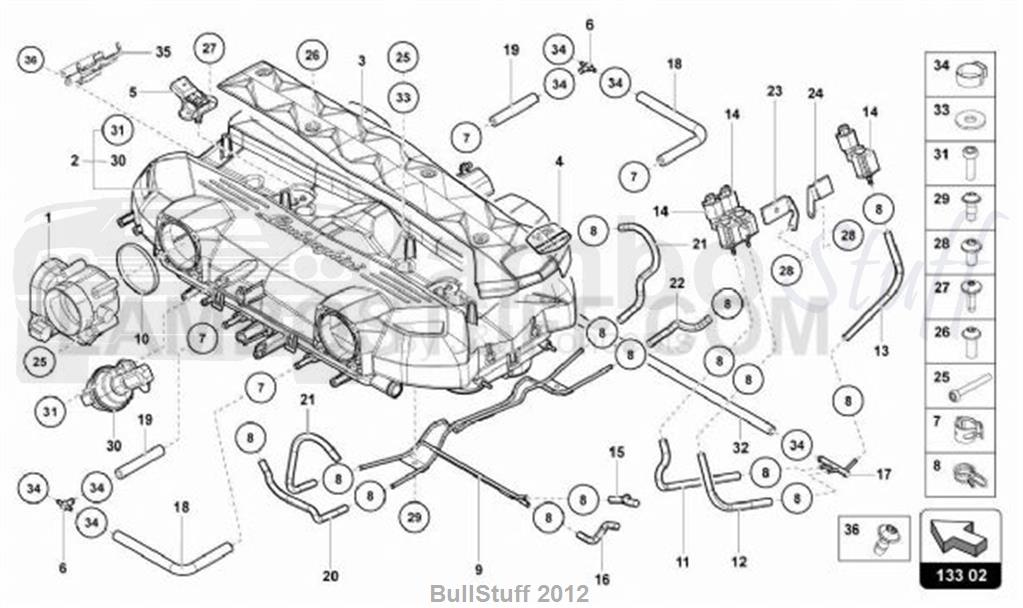

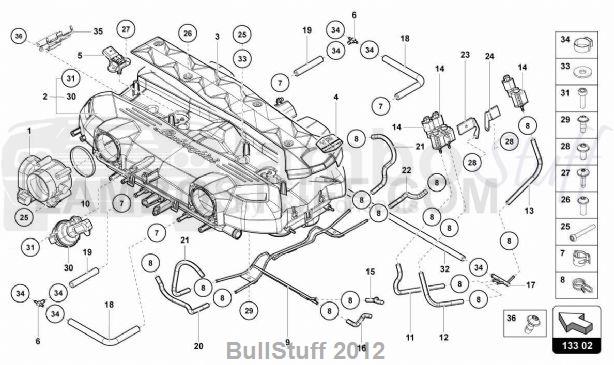

TAV: 133.02.00 - INTAKE MANIFOLD

2017 Lamborghini AVENTADOR SV LP750-4 COUPE USA INTAKE MANIFOLD (133.02.00)

Please note: You are not permitted to print or save images of the catalog pages. If you need a page printed, you must purchase a Aventador Parts Manual. Sorry, but there are NO exceptions.

Item #	PN	Item	Qty Req *
1	07C133062C	THROTTLE VALVE THROTTLE VALVE	4 req	Avail to order Our Price: $1,173.15
2	07M133433M	COVER INTAKE MANIFOLD	1 req	Avail to order Our Price: $2,739.33
3	07M103927K	COVER COVER (CARBON FIBER)	1 req	Avail to order Our Price: $3,265.09
3	07M103927L	COVER COVER (STANDARD)	1 req	Avail to order Our Price: $283.61
4	07M103115K	CLOSING PLATE EMBLEM	1 req	Avail to order Our Price: $53.23
5	06B906051	TEMPERATURE - MAP SENSOR PRESSURE SENSOR	2 req	Avail to order Our Price: $123.28
7	N90686701	SPRING CLAMP SPRING BAND CLAMP (14X12)	10 req	Avail to order Our Price: $2.09
8	400127217	SECURING CLIP CLAMP	18 req	Avail to order Our Price: $2.00
9	07M133085C	TUBE VACUUM PIPE	1 req	Avail to order Our Price: $275.42
10	07M129268	GASKET SEAL	4 req	Avail to order Our Price: $29.41
11	07M133727B	MOLDED HOSE VACUUM HOSE	1 req	Avail to order Our Price: $14.29
12	470131209	PRESSURE LINE PRESSURE PIPE	1 req	Avail to order Our Price: $18.92
13	470131201	PRESSURE LINE CONNECTING HOSE	1 req	Avail to order Our Price: $16.60
14	037906283C	ELECTRIC SWITCH SOLENOID VALVE (BLACK)	3 req	Current Stock: 4 Our Price: $133.84
15	07M131846C	HOSE INTAKE HOSE	1 req	Avail to order Our Price: $7.00
16	07M131847C	HOSE INTAKE HOSE	1 req	Avail to order Our Price: $14.45
17	470131585	CONNECTING PIECE CONNECTION PIECE	1 req	Avail to order Our Price: $157.07
18	07M131850B	HOSE VACUUM HOSE	2 req	Avail to order Our Price: $21.07
19	07M131208A	PRESSURE LINE VACUUM HOSE	2 req	Avail to order Our Price: $67.14
20	07M133605A	MOLDED HOSE VACUUM HOSE (BLUE)	2 req	Avail to order Our Price: $18.69
21	07M133727B	MOLDED HOSE VACUUM HOSE	2 req	Avail to order Our Price: $14.29
22	07M133605B	MOLDED HOSE VACUUM HOSE	1 req	Avail to order Our Price: $17.50
23	07M906287E	BRACKET BRACKET	1 req	Avail to order Our Price: $30.67
24	07M906303	HALTER BRACKET	1 req	Avail to order Our Price: $27.18
25	N10470704	HEXALOBULAR SOCKET ROUND HD. SCREW (M6X50)	16 req	Avail to order Our Price: $3.51
26	N10721401	SCREW OVAL HD. SELF-TAPP FITT. SCREW (6X16)	4 req	Avail to order Our Price: $2.00
27	N91136801	HEXAGON SOCKET HEAD PANEL BOLT HEXAGON SOCKET HEAD PANEL BOLT (4,2X11)	4 req	Current Stock: 4 Our Price: $2.00
28	N90638102	SCREW ROUND HD. SCREW (M6X12)	2 req	Current Stock: 12 Our Price: $2.00
29	N90925202	SCREW HEXAGON SOCKET HEAD COLLARED BOLT, THREAD FORMING (6X16)	2 req	Avail to order Our Price: $2.00
30		THROTTLE VALVE POSITIONER (CANNOT BE SOLD SEPARATELY)	4 req
31		1 SET BOLTS (CANNOT BE SOLD SEPARATELY)	8 req
32	470131175	PRESSURE LINE PIPE	1 req	Avail to order Our Price: $74.59
33	N01166623	WASHER WASHER (6,4X18X1,6)	4 req	Current Stock: 8 Our Price: $2.00
34	N10196901	LUG-TYPE HOSE CLAMP	7 req	Avail to order Our Price: $2.00
35	470971280A	BRACKET CARRIER	1 req	Avail to order Our Price: $35.81
36	N10683901	SCREW OVAL SOCKET HEAD BOLT WITH HEX DRIVE (TP6.0X12.0-Q-6X12)	2 req	Avail to order Our Price: $2.00
* Qty Req is the Quantity used on this part diagram. This does NOT mean this is how many you get, but rather how many you need to buy if you are replacing all the parts.
