2017 AVENTADOR SV LP750-4 COUPE - ENGLAND

Maintenance Parts:

Drivetrain

PN	Item	Diagram
07M115561B	SPIN-ON FILTER CARTUCCIS FIL.OLIO SPIN-ON FILTER CARTUCCIS FIL.OLIO		Current Stock: 2 Our Price: $48.56

Fuel-Air

PN	Item	Diagram
470133843A	FILTER ELEMENT FILTER ELEMENT		Current Stock: 1 Our Price: $163.31

Ignition

PN	Item	Diagram
470905619	SEE PN 470905619C SPARK PLUG		Avail to order Our Price: $101.44
470905619A	SPARK PLUG SPARK PLUG		Avail to order Our Price: $104.03

Misc

PN	Item
N0300574	KEY - Spanner Murcielago-Aventador-Huracan Wrench Spanner Murcielago-Aventador-Huracan	Avail to order Our Price: $9.19
6Q0819653B	ODOR FILTER ODOR FILTER	Avail to order Our Price: $63.53
400093050D	CTEK US-CD BATTERY CHARGER Input 110-120VAC Output Max 4.3A, 12V Back drain less than 1.5Am/month	Avail to order Our Price: $317.22

Tools and Tookits

PN	Item	Diagram
470012257	DEMOUNTING HOOK DEMOUNTING HOOK		Current Stock: 1 Our Price: $253.70

Open All

Select Group and TAV

< Previous Next >

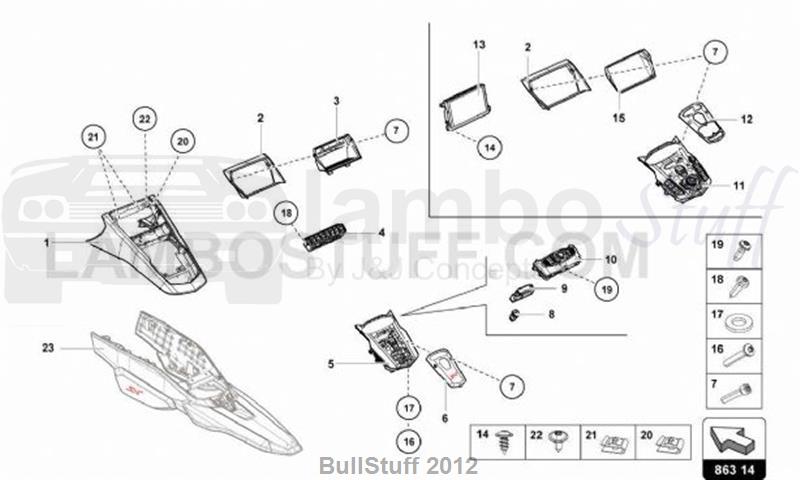

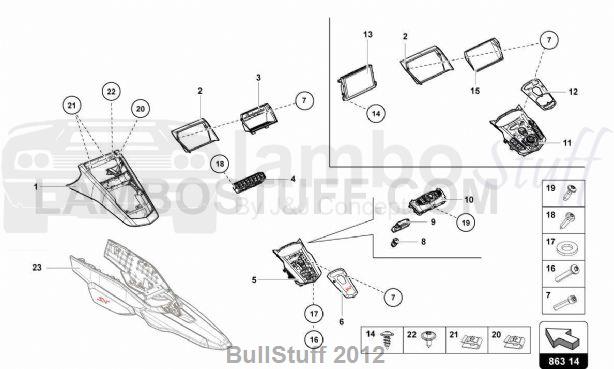

TAV: 863.14.00 - CENTRE CONSOLE

2017 Lamborghini AVENTADOR SV LP750-4 COUPE ENGLAND CENTRE CONSOLE (863.14.00)

Please note: You are not permitted to print or save images of the catalog pages. If you need a page printed, you must purchase a Aventador Parts Manual. Sorry, but there are NO exceptions.

Item #	PN	Item	Qty Req *
1	470863315A	EXTENSION,CENTER C LINING FOR CONSOLE	1 req	Avail to order Our Price: $1,407.84
2	470863567A	LINING COVER CONSOLE CORNER TRIM (CARBON INTERIOR)	1 req	Avail to order Our Price: $3,788.39
2	470919165	CAP DISPLAY COMPLESSIV TRIM	1 req	Avail to order Our Price: $8,498.84
3	470919180C	TRIM DISPLAY TRIM (CARBON INTERIOR)	1 req	Avail to order Our Price: $2,016.31
4	471941567J	SWITCH BRACKET CONTROL PANEL WITH PUSHBUTTONS (WITH START AND STOP SYSTEM - WITHOUT LIFTING SYSTEM- STANDARD INTERIOR)	1 req	Avail to order Our Price: $1,270.07
4	471941567K	SWITCH BRACKET RETAINING FRAME FOR SWITCH BRACKET (WITH AND WITHOUT REAR VIEW CAMERA - WITHOUT PARK SENSOR - SHINY BLACK)	1 req	Avail to order Our Price: $947.17
4	471941567M	SWITCH BRACKET CONTROL PANEL WITH PUSHBUTTONS (WITH START AND STOP SYSTEM - SHINY BLACK)	1 req	Avail to order Our Price: $947.17
4	471941567M	SWITCH BRACKET RETAINING FRAME FOR SWITCH BRACKET (WITH START AND STOP SYSTEM - SHINY BLACK)	1 req	Avail to order Our Price: $947.17
4	471941567N	SWITCH BRACKET RETAINING FRAME FOR SWITCH BRACKET (WITH START & STOP SYSTEM , REAR VIEW AND PARK SENSORS - SHINY BLACK)	1 req	Avail to order Our Price: $947.17
4	471941567N	SWITCH BRACKET CONTROL PANEL WITH PUSHBUTTONS (WITH STOP&START SYSTEM - REAR VIEW CAMERA WITH PARK SENSORS - SHINY BLACK)	1 req	Avail to order Our Price: $947.17
4	471941567Q	SWITCH BRACKET CONTROL PANEL WITH PUSHBUTTONS (START AND STOP - - WITHOUT LIFTING - SHINY BLACK)	1 req	Avail to order Our Price: $947.17
5	470919609F	OPERATING DEVICE MMI SWITCH DISPLAY UNIT ('HIGH' 7")	1 req	Avail to order Our Price: $4,696.16
6	470907047	COULISSE TRIM ('MMI')	1 req	Avail to order Our Price: $1,657.54
7	WHT003088	SCREW HEXAGON SOCKET FLAT HEAD BOLT (M4X16)	2 req	Current Stock: 11 Our Price: $2.00
8	470905217A	TIP SWITCH START/STOP START BUTTON (BLACK H77)	1 req	Avail to order Our Price: $172.94
9	470959674A	SWITCH STRIP DRIVE SELECT SWITC MULTIPLE SWITCH (DRIVE SELECT, BLACK H77)	1 req	Avail to order Our Price: $328.64
10	470820043F	A/C CONTROL DISPLAY AND CONTROL PANEL WITH CU FOR ELECTRONICALLY CONTROLLED AIR-CONDITIONING (WITH HEATED SEATS, BLACK H77)	1 req	Avail to order Our Price: $5,855.20
10	470820043J	A/C CONTROL DISPLAY AND CONTROL PANEL WITH CU FOR ELECTRONICALLY CONTROLLED AIR-CONDITIONING	1 req	Avail to order Our Price: $5,855.20
11	470919609C	OPERATING DEVICE MMI SWITCH DISPLAY UNIT (CARBON INTERIOR-'HIGH' 7")	1 req	Avail to order Our Price: $4,696.16
12		TRIM	0 req
13	8R0919604A	DISPLAY HIGH 3G+ DISPLAY UNIT ('HIGH' 7")	1 req	Avail to order Our Price: $1,417.88
14	N90986803	FLANGE TAPPING HEXAGON SOCKET HEAD PANEL BOLT (4,2X13)	4 req	Avail to order Our Price: $2.00
15	470919180B	TRIM DISPLAY TRIM	1 req	Avail to order Our Price: $177.95
16	N10582103	HEXALOBULAR SOCKET OVAL HEAD COUNTERSUNK BOLT WITH MULTI-POINT SOCKET HEAD (M6X40)	2 req	Current Stock: 15 Our Price: $2.00
17	N01152427	WASHER WASHER (6,4X12,5X1,6)	2 req	Avail to order Our Price: $2.00
18	N10656302	PAN HEAD SHEET HEXAGON SOCKET OVAL HEAD BOLT (ST3,5X13)	2 req	Current Stock: 1 Our Price: $17.16
19	N10625802	SCREW HEXAGON SOCKET FLAT HEAD BOLT (3X10)	4 req	Avail to order Our Price: $2.00
20	N0154487	SPEED NUT SPEED NUT (4,2X16,3X11)	4 req	Current Stock: 6 Our Price: $2.00
21	N90526602	SNAP NUT CLAMP SPEED NUT (M4X13,6X15)	2 req	Avail to order Our Price: $2.00
22	N90944603	HEXALOBULAR SOCKET OVAL HEXAGON SOCKET HEAD BOLT (M5X12)	2 req	Avail to order Our Price: $2.00
23		TUNNEL (SEE ILLUSTRATION :-CENTER 863-150)	0 req
* Qty Req is the Quantity used on this part diagram. This does NOT mean this is how many you get, but rather how many you need to buy if you are replacing all the parts.
