2017 AVENTADOR LP700-4 ROADSTER - ENGLAND

Maintenance Parts:

Drivetrain

PN	Item	Diagram
07M115561B	SPIN-ON FILTER CARTUCCIS FIL.OLIO SPIN-ON FILTER CARTUCCIS FIL.OLIO		Current Stock: 2 Our Price: $48.56

Fuel-Air

PN	Item	Diagram
4D0906321C	FUEL FILTER FILTER		Avail to order Our Price: $40.12
470133843A	FILTER ELEMENT FILTER ELEMENT		Current Stock: 1 Our Price: $163.31

Ignition

PN	Item	Diagram
470905619	SEE PN 470905619C SPARK PLUG		Avail to order Our Price: $101.44
470905619A	SPARK PLUG SPARK PLUG		Avail to order Our Price: $104.03

Misc

PN	Item
900000381	NLA (No Longer Available) Comes with Eyelet connects, Clamp connectors and Cigar Lighter Adapter.	Avail to order Our Price: $190.57
900000382	NLA use PN 400093050D for USA replacement	Avail to order Our Price: $190.57
400093050D	CTEK US-CD BATTERY CHARGER Input 110-120VAC Output Max 4.3A, 12V Back drain less than 1.5Am/month	Avail to order Our Price: $317.22
6Q0819653B	ODOR FILTER ODOR FILTER	Avail to order Our Price: $63.53
N0300574	KEY - Spanner Murcielago-Aventador-Huracan Wrench Spanner Murcielago-Aventador-Huracan	Avail to order Our Price: $9.19

Sensors

PN	Item
4E0927804	SEE PN 4E0927804F ABS SENSOR RIGHT	Avail to order Our Price: $45.07
4E0927803	ABS SENSOR LEFT ABS SENSOR LEFT	Current Stock: 2 Our Price: $45.07
470998161	COLD JOINT KIT Set of two 470919197C	Avail to order Our Price: $924.67

Tools and Tookits

PN	Item	Diagram
470012257	DEMOUNTING HOOK DEMOUNTING HOOK		Current Stock: 1 Our Price: $253.70

Open All

Select Group and TAV

< Previous Next >

TAV: 807.02.00 - BUMPER, COMPLETE

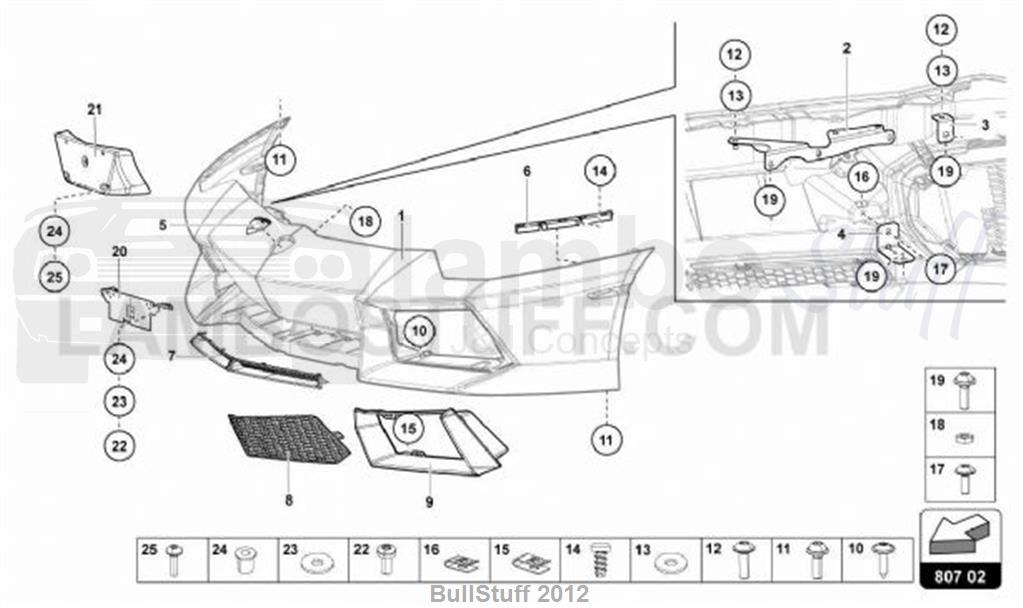

2017 Lamborghini AVENTADOR LP700-4 ROADSTER ENGLAND BUMPER, COMPLETE (807.02.00)

Please note: You are not permitted to print or save images of the catalog pages. If you need a page printed, you must purchase a Aventador Parts Manual. Sorry, but there are NO exceptions.

Item #	PN	Item	Qty Req *
1		BUMPER (SEE ILLUSTRATION :-FRONT 807-010)	0 req
2	470807326E	REINFORCEMENT REINFORCEMENT FOR BUMPER (FROM THE VIN ZHWUR1ZD2ELA 02464-RIGHT)	1 req	Avail to order Our Price: $99.31
3	470807481C	ANGLE BRACKET ARM	2 req	Avail to order Our Price: $28.57
4	470807129A	BRACKET ARM	2 req	Avail to order Our Price: $49.73
5	4T0853745A	TYPE SIGN LOGO ANT. LAMBORGHINI EMBLEM (FRONT)	1 req	Avail to order Our Price: $440.32
6	470807193D	SEE PN 470807193E ARM (UNTIL VIN FLA03341 SEE MOUNTING PROCEDURE-LEFT FRONT)	1 req	Avail to order Our Price: $71.47
6	470807194D	SEE PN 470807194E ARM (UNTIL VIN FLA03341 SEE MOUNTING PROCEDURE-RIGHT FRONT)	1 req	Avail to order Our Price: $71.47
7	470807639A	GRILLE GRILLE (CENTER)	1 req	Avail to order Our Price: $165.84
8	470807681	GRILLE GRILLE (LEFT FRONT)	1 req	Avail to order Our Price: $333.10
8	470807682	GRILLE GRILLE (RIGHT FRONT)	1 req	Avail to order Our Price: $348.82
9	470807819	TRIM TRIM FOR BUMPER (LEFT FRONT)	1 req	Avail to order Our Price: $2,022.86
9	470807819C	TRIM MOSTR.GRIGLIA SX TRIM FOR BUMPER (LEFT FRONT)	1 req	Avail to order Our Price: $7,884.12
9	470807820	TRIM TRIM FOR BUMPER (RIGHT FRONT)	1 req	Avail to order Our Price: $2,022.86
9	470807820C	TRIM MOSTR.GRIGLIA DX TRIM FOR BUMPER (RIGHT FRONT)	1 req	Avail to order Our Price: $7,884.12
10	N90698605	SCREW HEXAGON SOCKET HEAD PANEL BOLT (ST4,2X16)	8 req	Current Stock: 3 Our Price: $2.00
11	N10558102	HEXALOBULAR SOCKET SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (M6X18)	4 req	Current Stock: 11 Our Price: $4.24
12	N10661002	HEXALOBULAR SOCKET HEX SOCKET OVAL HEAD COLLARED (M6X20)	6 req	Current Stock: 18 Our Price: $2.00
13	N01167026	WASHER WASHER (8,4X24X2)	6 req	Avail to order Our Price: $2.00
14	N10558102	HEXALOBULAR SOCKET SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (M6X18)	4 req	Current Stock: 11 Our Price: $4.24
15	N0154487	SPEED NUT SPEED NUT (4,2X16,3X11)	8 req	Current Stock: 6 Our Price: $2.00
16	N90688703	SNAP NUT CLAMP SPEED NUT (M6X24X16)	2 req	Current Stock: 2 Our Price: $2.00
17	N90780903	SOCKET SCREW OVAL HEXAGON SOCKET HEAD BOLT (M6X16)	2 req	Current Stock: 1 Our Price: $2.00
18	N0110027	HEX.NUT HEXAGON NUT (M3)	1 req	Current Stock: 1 Our Price: $2.00
19	N10558102	HEXALOBULAR SOCKET SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (M6X18)	10 req	Current Stock: 11 Our Price: $4.24
20	470807287D	LICENSE PLATE ANT.TARGA LICENCE PLATE HOLDER (FRONT)	1 req	Avail to order Our Price: $151.41
21	470807287C	LICENSE PLATE BRAC LICENCE PLATE HOLDER (VALID FOR A MARKET CHINESE-FRONT)	1 req	Avail to order Our Price: $512.34
22	N10451404	screw HEXAGON SOCKET FLAT HEAD BOLT (M6X16)	3 req	Current Stock: 17 Our Price: $2.00
23	N01166623	WASHER WASHER (6,4X18X1,6)	3 req	Avail to order Our Price: $2.00
24	400807995	GROMMET GROMMET	5 req	Avail to order Our Price: $3.52
25	N10637302	HEXALOBULAR SOCKETFLANGE BOLT OVAL HEXAGON SOCKET HEAD BOLT (VALID FOR A MARKET CHINESE-M5X20)	2 req	Current Stock: 8 Our Price: $2.00
* Qty Req is the Quantity used on this part diagram. This does NOT mean this is how many you get, but rather how many you need to buy if you are replacing all the parts.
