2016 AVENTADOR SV LP750-4 COUPE - ENGLAND

Maintenance Parts:

Common repairs and upgrades

PN	Item
900000170	Tutela CS Speed Fluid -Oil Lifting System 1 liter Tutela CS Speed Fluid -Oil Lifting System 1 liter	Avail to order Our Price: $67.89
410860382	STEERING WHEEL COVER STEERING WHEEL COVER WITH CREST LOGO	Current Stock: 2 Our Price: $22.58
4T0803615	TOWING EYE TOWING EYE OLD PN 400803615	Current Stock: 4 Our Price: $48.32
G052529A2	TRANSMISSION FLUID TRANSMISSION FLUID	Avail to order Our Price: $39.00

Drivetrain

PN	Item	Diagram
07M115561B	SPIN-ON FILTER CARTUCCIS FIL.OLIO SPIN-ON FILTER CARTUCCIS FIL.OLIO		Current Stock: 3 Our Price: $104.15

Fuel-Air

PN	Item	Diagram
470133843A	FILTER ELEMENT FILTER ELEMENT		Current Stock: 1 Our Price: $174.19

Ignition

PN	Item	Diagram
470905619A	SPARK PLUG SPARK PLUG		Avail to order Our Price: $110.70
470905619C	Spark Plug Spark Plug		Avail to order Our Price: $106.98

Misc

PN	Item
6Q0819653B	CABIN FILTER AVENTADOR CABIN FILTER	Current Stock: 2 Our Price: $65.74
400093050D	CTEK US-CD BATTERY CHARGER Input 110-120VAC Output Max 4.3A, 12V Back drain less than 1.5Am/month	Avail to order Our Price: $373.98
0R0000149	CLEANER FLUID 250ml CLEANER FLUID	Current Stock: 1 Our Price: $70.78

Sensors

PN	Item
7PP907275F	WHEEL ELECTRONICS WHEEL ELECTRONICS	Avail to order Our Price: $169.72
4H0959126A	AC PRESSURE SENSOR A/C PRESSURE SENSOR,	Avail to order Our Price: $80.25
06A906262AT	OXYGEN SENSOR O2 SENSOR - LAMBDA PROBE OXYGEN SENSOR O2 SENSOR - LAMBDA PROBE	Current Stock: 24 Our Price: $154.84
4E0927804F	LH ABS SENSOR SPEED SENSOR	Current Stock: 1 Our Price: $145.31
4E0927803F	RH ABS SENSOR SPEED SENSOR	Avail to order Our Price: $145.31

Tools and Tookits

PN	Item
470012257	DEMOUNTING HOOK DEMOUNTING HOOK	Current Stock: 1 Our Price: $253.70
69795000805	V12 VALVE SEALING FITTING TOOL V12 VALVE SEALING FITTING TOOL	Avail to order Our Price: $359.54
69195290	TOOL KIT FOR REMOVING THE GRILLE TOOL KIT FOR REMOVING THE GRILLE BUMPER NET TOOL	Avail to order Our Price: $393.04
61195080	TOOL FOR TOP DEAD CENTER LP700 TOP DEAD CENTER GAUGE. TOOL FOR TOP DEAD CENTER LP700	Avail to order Our Price: $260.54

Open All

Select Group and TAV

< Previous Next >

TAV: 260.01.00 - A/C CONDENSER

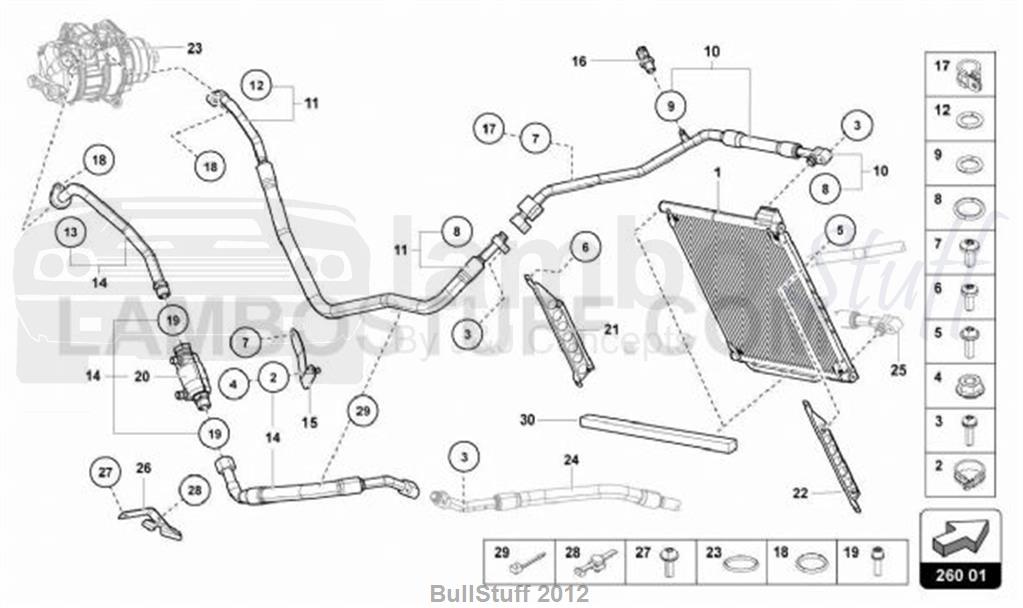

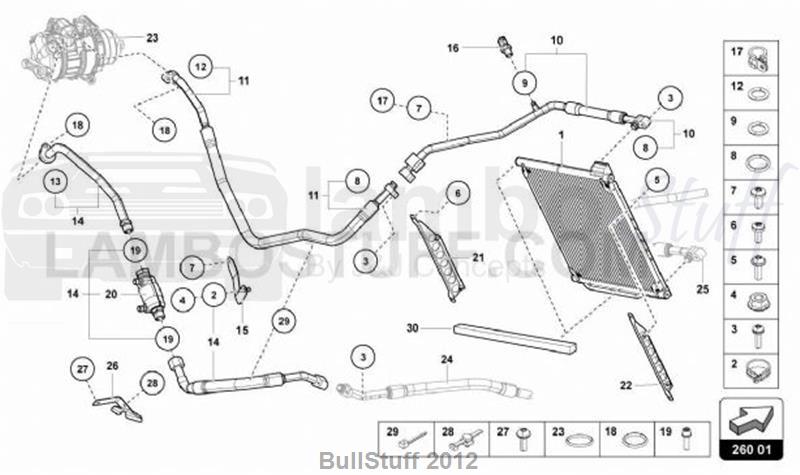

2016 Lamborghini AVENTADOR SV LP750-4 COUPE ENGLAND A/C CONDENSER (260.01.00)

Please note: You are not permitted to print or save images of the catalog pages. If you need a page printed, you must purchase a Aventador Parts Manual. Sorry, but there are NO exceptions.

Item #	PN	Item	Qty Req *
1	470260401A	CONDENSER A/C CONDENSER	1 req	Avail to order Our Price: $1,055.54
2	N90942301	HOLDING CLIP CLAMP (48X15)	1 req	Avail to order Our Price: $10.94
3	N10347204	HEXALOBULAR SOCKET HEXAGON SOCKET HEAD BOLT, SELF-LOCKING (M6X25)	3 req	Avail to order Our Price: $2.53
4	N01508213	HEXAGON FLANGE NUT HEXAGON COLLAR NUT (M6)	1 req	Current Stock: 4 Our Price: $2.00
5	N10569501	HEXALOBULAR SOCKET ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD (M5X16)	4 req	Avail to order Our Price: $2.39
6	N10451408	HEXALOBULAR SOCKET OVAL HEXAGON SOCKET HEAD BOLT (M6X16)	4 req	Avail to order Our Price: $2.00
7	N91096701	HEXALOBULAR SOCKET OVAL HEXAGON SOCKET HEAD BOLT (M6X16)	2 req	Current Stock: 8 Our Price: $2.00
8	4E0260749B	seal ring SEAL RING (13,7X2,5)	2 req	Current Stock: 2 Our Price: $6.03
9	7H0820896	O-RING O-RING (7,6X1,8)	1 req	Avail to order Our Price: $5.81
10	470260702D	REFRIGERANT LINE FLANGED PIPE	1 req	Avail to order Our Price: $345.39
11	470260701B	REFRIGERANT LINE FLANGED PIPE	1 req	Avail to order Our Price: $424.30
12	4E0260749A	seal ring SEAL RING (11X2,5)	2 req	Current Stock: 7 Our Price: $6.55
13	8E0260749C	seal ring SEAL RING (23,8X2,4)	1 req	Current Stock: 4 Our Price: $5.52
14	470260709C	REFRIGERANT LINE FLANGED PIPE	1 req	Avail to order Our Price: $1,950.28
15	470201809	BRACKET BRACKET	1 req	Avail to order Our Price: $36.11
16	4H0959126A	AC PRESSURE SENSOR PRESSURE SENDER	1 req	Avail to order Our Price: $80.25
17	N0206405	HOLDING CLIP CLAMP (18X15)	1 req	Avail to order Our Price: $2.17
18		SEAL RING (NO PART - INCLUED IN REF.:-14X2 14)	0 req
19	N10414402	HEXALOBULAR SOCKET SOCKET HEAD BOLT WITH HEXAGON SOCKET HEAD (M8X28)	2 req	Avail to order Our Price: $3.28
19		SEAL RING (NO PART - SEE REF.:-14X2 14)	0 req
20		FUEL COOLER (NO PART - INCLUED IN REF.:- 14)	0 req
21	470260427A	BRACKET BRACKET (LEFT)	1 req	Avail to order Our Price: $42.81
22	470260428A	BRACKET BRACKET (RIGHT)	1 req	Avail to order Our Price: $42.81
23		A/C COMPRESSOR (SEE ILLUSTRATION :- 145-020)	0 req
24		FLANGED PIPE (SEE ILLUSTRATION :- 260-020)	0 req
25		FLANGED PIPE (SEE ILLUSTRATION :- 260-020)	0 req
26	470260761	BRACKET BRACKET	1 req	Avail to order Our Price: $41.09
27	N91032702	HEXALOBULAR SOCKET FLANGE BOLT ROUND-HEAD SCREW WITH INNER HEXAGON SOCKET HEAD (M6X20)	4 req	Current Stock: 6 Our Price: $2.00
28	3W0971838	CABLE TIE CABLE TIES (4,6X193MM 6,5/0,3-3,0MM)	1 req	Avail to order Our Price: $2.00
29	N10562301	CLAMP CABLE TIES (4,7X194)	2 req	Avail to order Our Price: $2.00
30	470260423	SEAL SPONGE	2 req	Avail to order Our Price: $54.79
* Qty Req is the Quantity used on this part diagram. This does NOT mean this is how many you get, but rather how many you need to buy if you are replacing all the parts.
