2016 AVENTADOR SV LP750-4 COUPE - AUSTRALIA

Maintenance Parts:

Common repairs and upgrades

PN	Item
900000170	Tutela CS Speed Fluid -Oil Lifting System 1 liter Tutela CS Speed Fluid -Oil Lifting System 1 liter	Avail to order Our Price: $67.89
410860382	STEERING WHEEL COVER STEERING WHEEL COVER WITH CREST LOGO	Current Stock: 2 Our Price: $22.58
4T0803615	TOWING EYE TOWING EYE OLD PN 400803615	Current Stock: 2 Our Price: $48.32

Drivetrain

PN	Item	Diagram
07M115561B	SPIN-ON FILTER CARTUCCIS FIL.OLIO SPIN-ON FILTER CARTUCCIS FIL.OLIO		Avail to order Our Price: $104.15

Fuel-Air

PN	Item	Diagram
470133843A	FILTER ELEMENT FILTER ELEMENT		Current Stock: 1 Our Price: $174.19

Ignition

PN	Item	Diagram
470905619A	SPARK PLUG SPARK PLUG		Avail to order Our Price: $110.70
470905619C	Spark Plug Spark Plug		Avail to order Our Price: $106.98

Misc

PN	Item
6Q0819653B	CABIN FILTER AVENTADOR CABIN FILTER	Current Stock: 2 Our Price: $65.74
400093050D	CTEK US-CD BATTERY CHARGER Input 110-120VAC Output Max 4.3A, 12V Back drain less than 1.5Am/month	Avail to order Our Price: $373.98
0R0000149	CLEANER FLUID 250ml CLEANER FLUID	Current Stock: 1 Our Price: $70.78

Sensors

PN	Item
7PP907275F	WHEEL ELECTRONICS WHEEL ELECTRONICS	Avail to order Our Price: $169.72
4H0959126A	AC PRESSURE SENSOR A/C PRESSURE SENSOR,	Avail to order Our Price: $80.25
06A906262AT	OXYGEN SENSOR O2 SENSOR - LAMBDA PROBE OXYGEN SENSOR O2 SENSOR - LAMBDA PROBE	Current Stock: 24 Our Price: $154.84
4E0927803F	RH ABS SENSOR SPEED SENSOR	Avail to order Our Price: $145.31
4E0927804F	LH ABS SENSOR SPEED SENSOR	Current Stock: 1 Our Price: $145.31

Tools and Tookits

PN	Item
470012257	DEMOUNTING HOOK DEMOUNTING HOOK	Current Stock: 1 Our Price: $253.70
69795000805	V12 VALVE SEALING FITTING TOOL V12 VALVE SEALING FITTING TOOL	Avail to order Our Price: $359.54
69195290	TOOL KIT FOR REMOVING THE GRILLE TOOL KIT FOR REMOVING THE GRILLE BUMPER NET TOOL	Avail to order Our Price: $393.04
61195080	TOOL FOR TOP DEAD CENTER LP700 TOP DEAD CENTER GAUGE. TOOL FOR TOP DEAD CENTER LP700	Avail to order Our Price: $260.54

Open All

Select Group and TAV

< Previous Next >

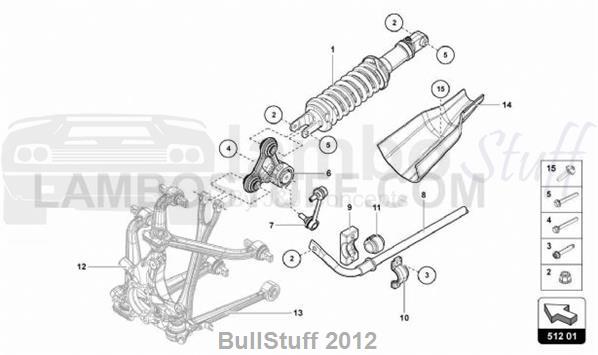

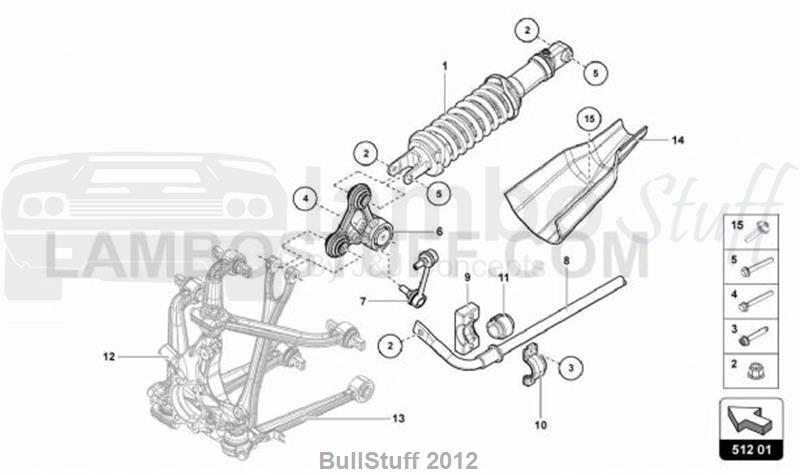

TAV: 512.01.00 - SUSPENSION

2016 Lamborghini AVENTADOR SV LP750-4 COUPE AUSTRALIA SUSPENSION (512.01.00)

Please note: You are not permitted to print or save images of the catalog pages. If you need a page printed, you must purchase a Aventador Parts Manual. Sorry, but there are NO exceptions.

Item #	PN	Item	Qty Req *
1	470512019AB	SHOCK ABSORBER POST.MOLLE ROSSE SHOCK ABSORBERS (MAGNARIDE - RED SPRING-REAR RED)	2 req	Avail to order Our Price: $11,233.20
1	470512019T	SHOCK ABSORBER POSTERIORE SHOCK ABSORBERS (MAGNARIDE - BLACK SPRING-REAR BLACK)	2 req	Avail to order Our Price: $11,039.78
2	N10106402	HEX.NUT W/FLANGE LOCKING ELEM. HEXAGON COLLAR NUT SELF-LOCKING (M12X1,5)	6 req	Avail to order Our Price: $2.68
3	N10682501	12-POINT SOCKET FL SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (M8X50)	4 req	Current Stock: 6 Our Price: $3.06
4	N10640301	HEXAGON FLANGE HEX COLLARED BOLT (M12X1,5X100)	2 req	Avail to order Our Price: $7.89
5	N10428002	HEXAGON FLANGE HEX COLLARED BOLT (M12X1,5X80)	2 req	Avail to order Our Price: $6.92
6	470513127	LEVER ARM OUTRIGGER (REAR)	1 req	Avail to order Our Price: $1,394.98
7	470505465C	CONNECTING LINK COUPLING ROD (LEFT)	1 req	Avail to order Our Price: $112.40
7	470505466C	COUPLING ROD COUPLING ROD (RIGHT)	1 req	Avail to order Our Price: $112.40
8	470511409D	STABILIZER ANTI-ROLL BAR	1 req	Avail to order Our Price: $401.97
9	420411031A	STABILIZER MOUNTIN ANTI-ROLL BAR BEARING BRACKET	2 req	Avail to order Our Price: $28.07
10	4D0411336G	CLIP CLAMP	2 req	Current Stock: 1 Our Price: $5.74
11	4D0411327J	RUBBER MOUNTING RUBBER BUSH (29MM)	2 req	Current Stock: 1 Our Price: $14.15
12		WHEEL BEARING HOUSING (SEE ILLUSTRATION :- 505-020)	0 req
13		CABLE (SEE ILLUSTRATION :-LOWER 505-010)	0 req
14	470512575A	HEAT SHIELD DAEMPFER HEAT INSULATION	1 req	Avail to order Our Price: $2,262.92
15	N10714801	HEXALOBULAR SOCKET FILLISTER HEAD BOLT WITH MULTI-POINT SOCKET HEAD (M6X18)	1 req	Avail to order Our Price: $2.00
* Qty Req is the Quantity used on this part diagram. This does NOT mean this is how many you get, but rather how many you need to buy if you are replacing all the parts.
