2016 AVENTADOR LP700-4 ROADSTER - USA

Maintenance Parts:

Drivetrain

PN	Item	Diagram
07M115561B	SPIN-ON FILTER CARTUCCIS FIL.OLIO SPIN-ON FILTER CARTUCCIS FIL.OLIO		Current Stock: 2 Our Price: $48.56

Fuel-Air

PN	Item	Diagram
4D0906321C	FUEL FILTER FILTER		Avail to order Our Price: $40.12
470133843A	FILTER ELEMENT FILTER ELEMENT		Current Stock: 1 Our Price: $163.31

Ignition

PN	Item	Diagram
470905619	SEE PN 470905619C SPARK PLUG		Avail to order Our Price: $101.44
470905619A	SPARK PLUG SPARK PLUG		Avail to order Our Price: $104.03

Misc

PN	Item
900000382	NLA use PN 400093050D for USA replacement	Avail to order Our Price: $190.57
900000381	NLA (No Longer Available) Comes with Eyelet connects, Clamp connectors and Cigar Lighter Adapter.	Avail to order Our Price: $190.57
N0300574	KEY - Spanner Murcielago-Aventador-Huracan Wrench Spanner Murcielago-Aventador-Huracan	Avail to order Our Price: $9.19
6Q0819653B	ODOR FILTER ODOR FILTER	Avail to order Our Price: $63.53
400093050D	CTEK US-CD BATTERY CHARGER Input 110-120VAC Output Max 4.3A, 12V Back drain less than 1.5Am/month	Avail to order Our Price: $317.22

Sensors

PN	Item
4E0927804	SEE PN 4E0927804F ABS SENSOR RIGHT	Avail to order Our Price: $45.07
4E0927803	ABS SENSOR LEFT ABS SENSOR LEFT	Current Stock: 2 Our Price: $45.07
470998161	COLD JOINT KIT Set of two 470919197C	Avail to order Our Price: $924.67

Tools and Tookits

PN	Item	Diagram
470012257	DEMOUNTING HOOK DEMOUNTING HOOK		Current Stock: 1 Our Price: $253.70

Open All

Select Group and TAV

< Previous Next >

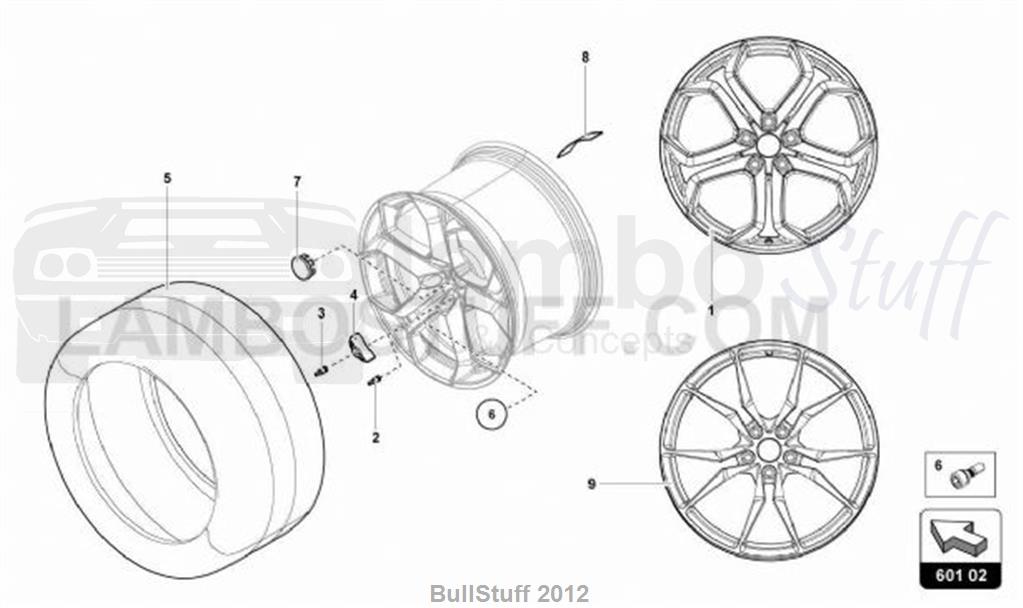

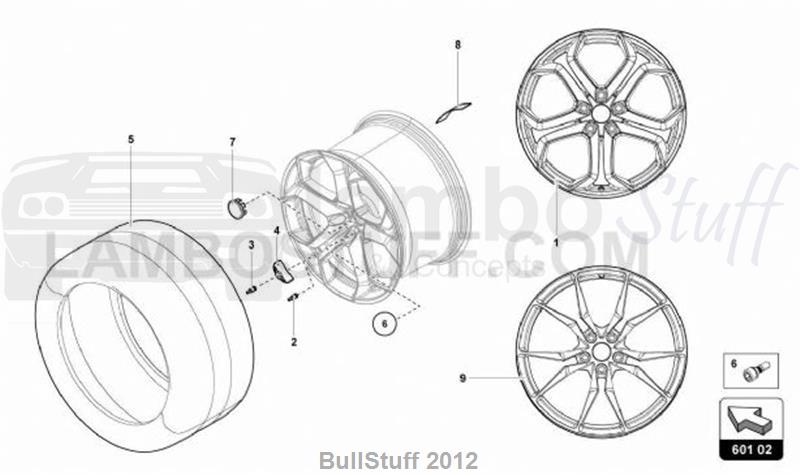

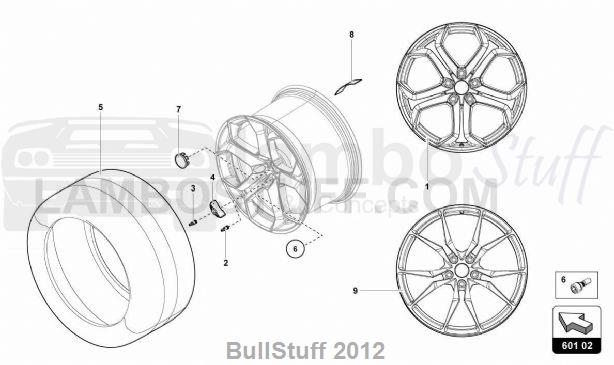

TAV: 601.02.00 - TYRES

2016 Lamborghini AVENTADOR LP700-4 ROADSTER USA TYRES (601.02.00)

Please note: You are not permitted to print or save images of the catalog pages. If you need a page printed, you must purchase a Aventador Parts Manual. Sorry, but there are NO exceptions.

Item #	PN	Item	Qty Req *
0		13X21)	0 req
0		13X21)	0 req
0		DIAMOND CUT)	0 req
0		DIAMOND CUT	0 req
0		13X21)	0 req
0		13X21)	0 req
0		12X20)	0 req
0		12X20)	0 req
1	470601017P	REAR LIGHT METAL WHEEL LP700 ALUMINIUM RIM ('IPERIONE SHINY BLACK'	2 req	Avail to order Our Price: $3,515.99
1	470601017A	LIGHT METAL WHEEL ALUMINIUM RIM ('IPERIONE SHINY SILVER'	2 req	Avail to order Our Price: $3,724.08
2	410601361A	VALVE METAL VALVE (NO TPMS)	2 req	Avail to order Our Price: $51.81
3	400601361A	Valve Stem - MURCI REAR - Gallardo 2008 - 2009 9 MM (SCORPIUS/CASSIOPEA/CORDELIA/APOLLO) METAL VALVE (TPMS SYSTEM-REAR)	2 req	Current Stock: 4 Our Price: $151.41
4		TYRE PRESSURE SENSOR (SEE ILLUSTRATION :- 907-010)	0 req
5	0R8340003	Aventador WINTER TIRE KIT LP700-4 1 SET TYRES (FRONT AND REAR)	1 req	Avail to order Our Price: $4,227.32
5	0R8340004	Aventador STANDARD TIRE KIT LP700-4 1 SET TYRES (FRONT AND REAR ZR19+ZR20)	1 req	Current Stock: 1 Our Price: $6,658.85
5	0R8340020	Aventador REAR STANDARD TIRE SET 1 SET TYRES (REAR ZR20)	1 req	Avail to order Our Price: $1,827.22
5	0R8340022	Aventador REAR WINT. TIRE SET . 1 SET TYRES (REAR R20)	1 req	Avail to order Our Price: $3,009.18
5	0R8340037	Aventador Tire KIT 20-21 Set of 4 1 SET TYRES (FRONT AND REAR 1. OVERSIZE)	1 req	Avail to order Our Price: $3,534.22
5	0R8340039	TYRES KIT 20-21 REAR 1 SET TYRES (REAR 1. OVERSIZE)	1 req	Avail to order Our Price: $3,075.51
5	470898855	Aventador PIRELLI EDITION TIRE SET FOR 83X 1 SET TYRES (FRONT AND REAR PZERO)	1 req	Avail to order Our Price: $7,456.99
5	470998527	Aventador WINTER TIRE KIT LP700-4 20-21 1 SET TYRES (FRONT AND REAR R20/21)	1 req	Avail to order Our Price: $4,993.18
6	WHT001161B	WHEEL BOLT BLACK WHEEL BOLT WITH TORX (M14X1,5)	10 req	Avail to order Our Price: $18.80
7	470601147	WHEEL TRIM HUP CAP	2 req	Avail to order Our Price: $97.36
8	400010502C	TIRE PRESSURE STICKER	2 req	Current Stock: 11 Our Price: $53.68
9	470601017AA	Rear shiny black Dione lp700 ALUMINIUM RIM (DIONE SHINY BLACK'	2 req	Avail to order Our Price: $12,958.93
9	470601017G	LIGHT METAL WHEEL ALUMINIUM RIM (DIONE SHINY SILVER'	2 req	Avail to order Our Price: $12,958.93
9	470601017AS	ALLOY WHEEL POST.DIO.DIA.SH.BL ALUMINIUM RIM (BLACK SHINING DIAMOND CUT-DIONE BLACK SHINING	2 req	Avail to order Our Price: $9,701.27
9	470601017AL	ALLOY WHEEL ALUMINIUM RIM (AD PERSONAM-DIONE 13X21 TITANIUM MATT	2 req	Avail to order Our Price: $7,713.65
9	470601017AC	LIGHT METAL WHEEL RIM (TITANIUM MATT 13X21)	2 req	Avail to order Our Price: $6,515.35
9	470601017AF	LIGHT METAL WHEEL POST. ALUMINIUM RIM (DIONE MATT BLACK'	2 req	Avail to order Our Price: $6,515.35
* Qty Req is the Quantity used on this part diagram. This does NOT mean this is how many you get, but rather how many you need to buy if you are replacing all the parts.
