2015 AVENTADOR LP700-4 ROADSTER - ENGLAND

Maintenance Parts:

Common repairs and upgrades

PN	Item
900000170	Tutela CS Speed Fluid -Oil Lifting System 1 liter Tutela CS Speed Fluid -Oil Lifting System 1 liter	Avail to order Our Price: $67.89
410860382	STEERING WHEEL COVER STEERING WHEEL COVER WITH CREST LOGO	Current Stock: 2 Our Price: $22.58
4T0803615	TOWING EYE TOWING EYE OLD PN 400803615	Current Stock: 4 Our Price: $48.32
G052529A2	TRANSMISSION FLUID TRANSMISSION FLUID	Avail to order Our Price: $39.00

Drivetrain

PN	Item	Diagram
07M115561B	SPIN-ON FILTER CARTUCCIS FIL.OLIO SPIN-ON FILTER CARTUCCIS FIL.OLIO		Current Stock: 3 Our Price: $104.15

Fuel-Air

PN	Item	Diagram
4D0906321C	FUEL FILTER FILTER		Avail to order Our Price: $41.62
470133843A	FILTER ELEMENT FILTER ELEMENT		Current Stock: 1 Our Price: $174.19

Ignition

PN	Item	Diagram
470905619A	SPARK PLUG SPARK PLUG		Avail to order Our Price: $110.70
470905619C	Spark Plug Spark Plug		Avail to order Our Price: $106.98

Misc

PN	Item
6Q0819653B	CABIN FILTER AVENTADOR CABIN FILTER	Current Stock: 2 Our Price: $65.74
400093050D	CTEK US-CD BATTERY CHARGER Input 110-120VAC Output Max 4.3A, 12V Back drain less than 1.5Am/month	Avail to order Our Price: $373.98
0R0000149	CLEANER FLUID 250ml CLEANER FLUID	Current Stock: 1 Our Price: $70.78

Sensors

PN	Item
4E0927803	ABS SENSOR LEFT ABS SENSOR LEFT	Current Stock: 2 Our Price: $48.16
470998161	COLD JOINT KIT Set of two 470919197C	Avail to order Our Price: $999.38
7PP907275F	WHEEL ELECTRONICS WHEEL ELECTRONICS	Avail to order Our Price: $169.72
4H0959126A	AC PRESSURE SENSOR A/C PRESSURE SENSOR,	Avail to order Our Price: $80.25
06A906262AT	OXYGEN SENSOR O2 SENSOR - LAMBDA PROBE OXYGEN SENSOR O2 SENSOR - LAMBDA PROBE	Current Stock: 24 Our Price: $154.84
4E0927804F	LH ABS SENSOR SPEED SENSOR	Current Stock: 1 Our Price: $145.31
4E0927803F	RH ABS SENSOR SPEED SENSOR	Avail to order Our Price: $145.31

Tools and Tookits

PN	Item
470012257	DEMOUNTING HOOK DEMOUNTING HOOK	Current Stock: 1 Our Price: $253.70
69795000805	V12 VALVE SEALING FITTING TOOL V12 VALVE SEALING FITTING TOOL	Avail to order Our Price: $359.54
69195290	TOOL KIT FOR REMOVING THE GRILLE TOOL KIT FOR REMOVING THE GRILLE BUMPER NET TOOL	Avail to order Our Price: $393.04
61195080	TOOL FOR TOP DEAD CENTER LP700 TOP DEAD CENTER GAUGE. TOOL FOR TOP DEAD CENTER LP700	Avail to order Our Price: $260.54

Open All

Select Group and TAV

< Previous Next >

TAV: 505.01.00 - SUSPENSION

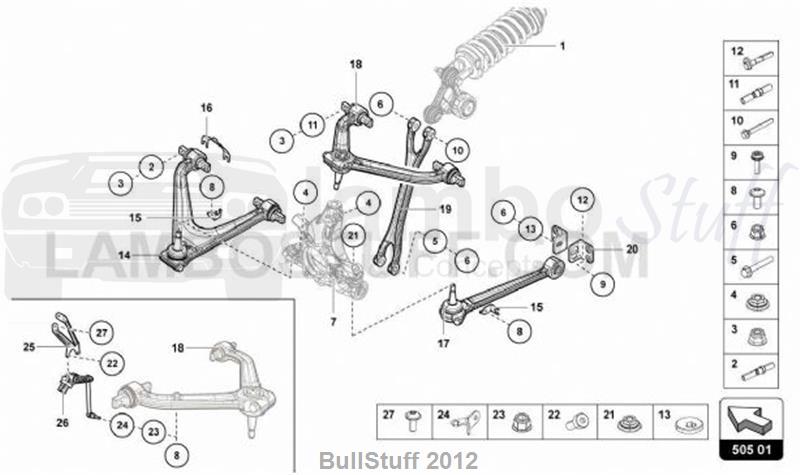

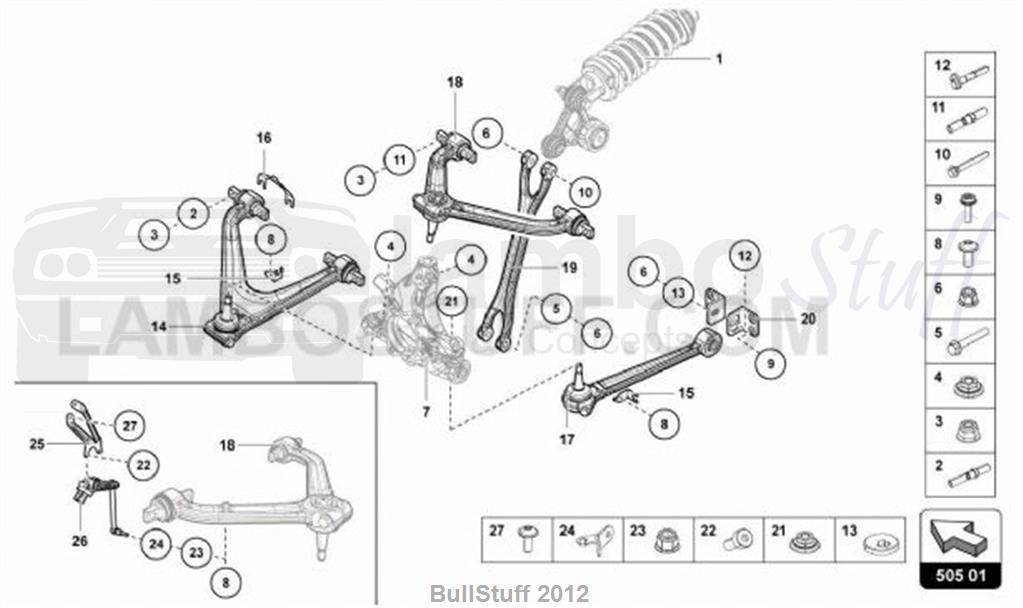

2015 Lamborghini AVENTADOR LP700-4 ROADSTER ENGLAND SUSPENSION (505.01.00)

Please note: You are not permitted to print or save images of the catalog pages. If you need a page printed, you must purchase a Aventador Parts Manual. Sorry, but there are NO exceptions.

Item #	PN	Item	Qty Req *
1		GAS SHOCK ABSORBER (SEE ILLUSTRATION :- 512-010)	0 req
2	WHT005396	TAP END STUD THREADED PIN (M10X1,25- M10X45)	8 req	Avail to order Our Price: $32.01
3	N10272302	HEX.NUT W/ FLANGE HEXAGON COLLAR NUT SELF-LOCKING (M10)	16 req	Avail to order Our Price: $2.53
4	WHT004898	HEXAGON FLANGE NUT W.WASHER HEXAGON COLLAR NUT SELF-LOCKING (M14X1,5)	4 req	Current Stock: 10 Our Price: $6.48
5	N10736901	HEXAGON FLANGE BOLT HEXAGON BOLT (M12X1,5X95)	2 req	Avail to order Our Price: $83.97
6	N10106402	HEX.NUT W/FLANGE LOCKING ELEM. HEXAGON COLLAR NUT SELF-LOCKING (M12X1,5)	6 req	Avail to order Our Price: $2.68
7		WHEEL BEARING HOUSING (SEE ILLUSTRATION :- 505-020)	0 req
8	N91055501	HEXALOBULAR SOCKET OVAL HEXAGON SOCKET HEAD BOLT (M5X12)	6 req	Current Stock: 20 Our Price: $2.00
9	N10689301	12-POINT SOCKET SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (M8X25)	8 req	Current Stock: 4 Our Price: $3.43
10	N10640301	HEXAGON FLANGE HEX COLLARED BOLT (M12X1,5X100)	2 req	Avail to order Our Price: $7.89
11	WHT005397	TAP END STUD THREADED PIN (M10X1,25- M10X39)	8 req	Avail to order Our Price: $43.10
12	WHT004856	ECCENTRIC BOLT ECCENTRIC BOLT (M12X1,5X75)	2 req	Avail to order Our Price: $70.27
13	WHT001676	ECCENTRIC WASHER ECCENTRIC WASHER (12,2X30X5X4)	4 req	Current Stock: 6 Our Price: $1.94
14	470505311F	TRACK CONTROL ARM WISHBONE (LEFT LOWER)	1 req	Avail to order Our Price: $1,461.97
14	470505312F	TRACK CONTROL ARM WISHBONE (RIGHT LOWER)	1 req	Avail to order Our Price: $1,461.97
15	470971005	CABLE HOLDER BRACKET	4 req	Avail to order Our Price: $19.65
16	470407203	BACKING PLATE BALANCING PLATE (1 MM)	4 req	Avail to order Our Price: $102.13
16	470407203A	BACKING PLATE BALANCING PLATE (0,5 MM)	4 req	Avail to order Our Price: $102.13
16	470407203B	BACKING PLATE BALANCING PLATE (3 MM)	4 req	Avail to order Our Price: $91.57
17	470501529E	TIE ROD CABLE (FROM VIN CLA00136-LEFT REAR)	1 req	Avail to order Our Price: $588.07
17	470501530E	TIE ROD CABLE (FROM VIN CLA00136-RIGHT REAR)	1 req	Avail to order Our Price: $588.07
18	470505323D	TRACK CONTROL ARM, REAR LH WISHBONE (LEFT UPPER)	1 req	Avail to order Our Price: $829.24
18	470505324D	TRACK CONTROL ARM, REAR RH WISHBONE (RIGHT UPPER)	1 req	Avail to order Our Price: $829.24
19	470513387B	PUSH ROD INSULATION STRIP (REAR)	2 req	Avail to order Our Price: $317.11
20	470501430A	MOUNTING BRACKET	4 req	Avail to order Our Price: $62.83
21	WHT004995	PREV.TORQUE HEX. HEXAGON FLANGE NUT, SELF-LOCKING (M12X1,5)	2 req	Avail to order Our Price: $5.07
22		SOCKET HEAD BOLT (ONLY FOR SV VERSION-M5X10)	0 req
23		HEXAGON NUT, SELF-LOCKING (ONLY FOR SV VERSION-M6)	0 req
24		ARM (ONLY FOR SV VERSION)	0 req
25		ARM (ONLY FOR SV VERSION)	0 req
26		POTENTIOMETER (ONLY FOR SV VERSION)	0 req
27		SOCKET HEAD BOLT WITH INNER MULTIPOINT HEAD (ONLY FOR SV VERSION-M6X18)	0 req
* Qty Req is the Quantity used on this part diagram. This does NOT mean this is how many you get, but rather how many you need to buy if you are replacing all the parts.
