1981-1988 Lamborghini Jalpa 3.5 USA Water Pump And System (9.17)

Maintenance Parts:

Belts

PN	Item	Diagram
001219534	Auxiliary Unit Belt Auxiliary Unit Belt		Avail to order Our Price: $335.91
004613685	Air Pump Belt Air Pump Belt		Avail to order Our Price: $76.70

Brakes

PN	Item	Diagram
003135292	Brake Pads Front - Jalpa - Early Diablo - Per Rotor Front Brake Pads		Avail to order Our Price: $509.81
003220800	Brake Pad Rear - Urraco - Jalpa - Sold Each Rear Brake Pad Kits		Avail to order Our Price: $96.01

Drivetrain

PN	Item
001505914	Oil Filter - Diablo - LM002 - Countach - Urraco - Jalpa Oil Cartridge. Note: these are ordered directly from the factory. Brand/Model/Color may differ from the picture. We have no control as to what is sent when they are ordered.	Avail to order Our Price: $83.98
002111111	Clutch Pressure Plate Clutch Pressure Plate	Current Stock: 1 Our Price: $2,742.24
002111112	Flywheel Flywheel	Avail to order Our Price: $1,232.98
004219984	Master Clutch Cylinder Clutch Cylinder Control Assembly	Avail to order Our Price: $341.11
002106838	Clutch Cylinder Rod Clutch Cylinder Rod	Avail to order Our Price: $66.50
002108644	Thrust Bearing Thrust Bearing	Current Stock: 1 Our Price: $1,804.01
002109862	Clutch Plate Clutch Plate	Current Stock: 2 Our Price: $1,389.53

Fuel-Air

PN	Item	Diagram
001320172KN	Performance filter for Countach/Espada/Jarama/Miura High Flow performance filter.		Current Stock: 1 Our Price: $130.02
006220011	Fuel Filter Fuel Filter		Avail to order Our Price: $305.02

Fuses-Bulbs-Relays

PN	Item
006311154	Relay Relay	Avail to order Our Price: $54.49
006617094	Check Parts Manual for location Bulb LAMP BA 15S 21W Used in various lamps (depending on your year and model)	Current Stock: 77 Our Price: $9.60
N0177522	bulb Headlight LAMP 12V/3W	Current Stock: 10 Our Price: $2.09
006309758	Cylinder Bulb 6411/12v 10w Cylinder Bulb 6411/12v 10w	Avail to order Our Price: $11.48
006617093	12v 5w Bulb 12v 5w Bulb	Avail to order Our Price: $19.64
006617106	12v 60/55w Bulb 12v 60/55w Bulb	Avail to order Our Price: $82.73

Gaskets

PN	Item
001526473	Grommet and Oil Seals Set - Jalpa - Miura Grommet and Oil Seals Set Jalpa - Miura	Avail to order Our Price: $338.14
001526493	Engine Gasket Set - Jalpa - Miura Engine Gasket Kit Jalpa and Miura See also 001526473 grommet & oil seals set	Avail to order Our Price: $1,066.00
001526492	Engine Gasket Kit Jalpa Engine Gasket Kit	Avail to order Our Price: $1,361.46

Ignition

PN	Item	Diagram
008811403	Spark Plug - Countach-Jalpa Spark Plug		Avail to order Our Price: $64.49
001622092	Spark Plug Wires - Jalpa Wires From Distributor To Spar		Avail to order Our Price: $646.55

Misc

PN	Item
006121168	NLA (No Longer Available) Wiper Blade Type B	Avail to order Our Price: $39.22
008200605R	OE spec alternative for 008200605 M6 Ncm 70 Urama Simmon Nut	Avail to order Our Price: $1.94
900000381	NLA (No Longer Available) Comes with Eyelet connects, Clamp connectors and Cigar Lighter Adapter.	Avail to order Our Price: $190.57
900000382	NLA use PN 400093050D for USA replacement	Avail to order Our Price: $190.57

Sensors

PN	Item	Diagram
002408637	Reverse Switch Switch		Avail to order Our Price: $132.69
001801333	NLA (No longer Available to order) Oil & Coolant Temperature Thermometer		Avail to order Our Price: $145.52

Open All

Select Group and TAV

< Previous Next >

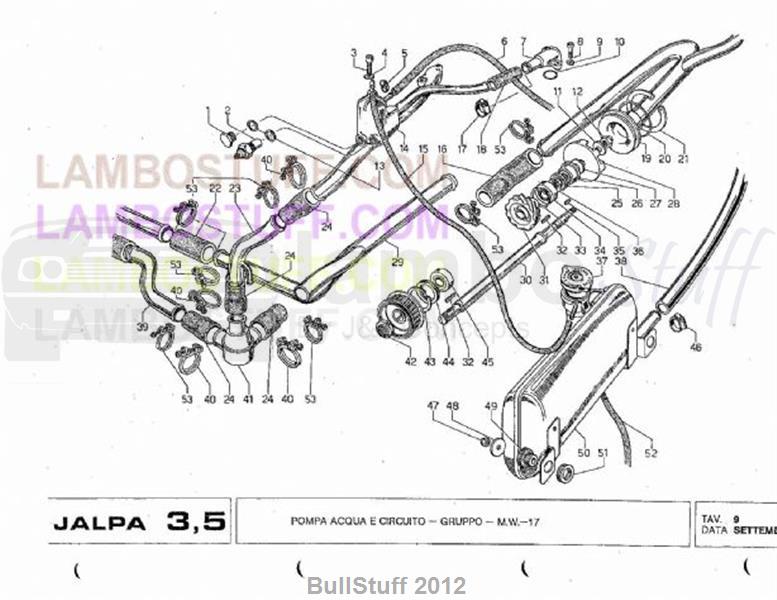

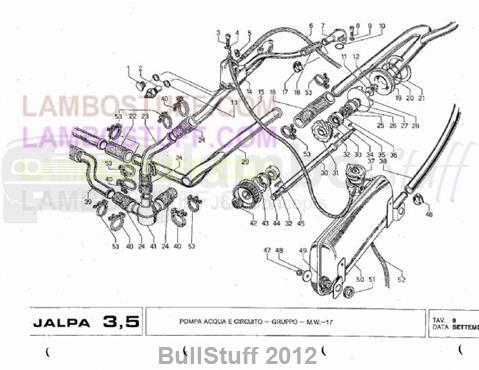

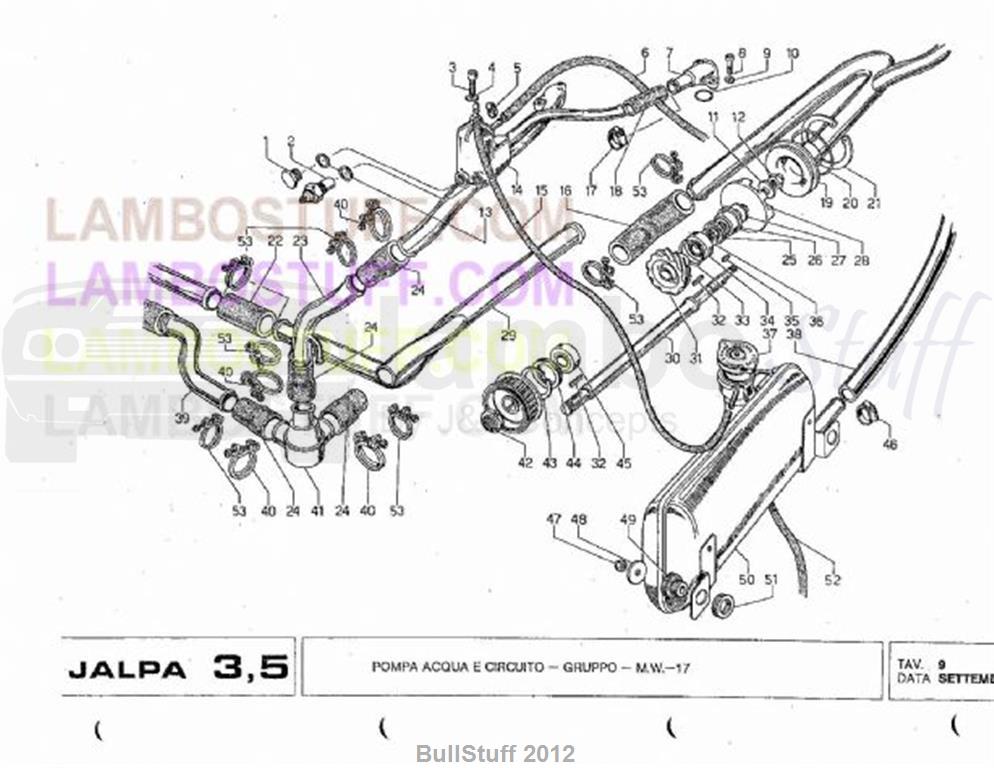

TAV: 9.17 - Water Pump And System

1981-1988 Lamborghini Jalpa 3.5 USA Water Pump And System (9.17)

Please note: You are not permitted to print or save images of the catalog pages. If you need a page printed, you must purchase a Jalpa Parts Manual. Sorry, but there are NO exceptions.

Item #	PN	Item	Qty Req *
1	008931602	Plug	1 req	Avail to order Our Price: $5.45
2	001801333	NLA (No longer Available to order)	1 req	*See Description
3	N10517304	12-POINT SOCKET	1 req	Current Stock: 10 Our Price: $2.00
4	WHT001514	SPRING WASHER	1 req	Current Stock: 9 Our Price: $25.98
5	008830204	Clamp	2 req	Avail to order Our Price: $9.77
6	001710942	Union/Central Cover Pipe	1 req	Avail to order Our Price: $38.20
7	001710910	Rh Head Outlet Union	1 req	Avail to order Our Price: $46.30
8	008700612	Screw M6x25 Uni 5931/8g/Zd	4 req	Avail to order Our Price: $2.00
9	WHT001197A	WASHER	4 req	Current Stock: 2 Our Price: $2.00
10	008602303	Ring 24 mm Or	2 req	Current Stock: 18 Our Price: $2.00
11	008411002	SEE PN WHT000768	1 req	Avail to order Our Price: $2.00
12	008201005	M10 Uni 5721-65 Special Nu	1 req	Avail to order Our Price: $13.15
13	008401610	Annealed Copper Washer 16x22x0	2 req	Current Stock: 25 Our Price: $10.86
14	001710912	Head Coolant Outlet Assembly	1 req	Avail to order Our Price: $227.41
15	001710943	NLA (No Longer Available)	1 req	*See Description
16	001708588	Coolant Radiator Pump Sleeve	1 req	Avail to order Our Price: $156.06
17	008830205	Clamp	2 req	Avail to order Our Price: $7.68
18	001710911	Rh Head Outlet/UnionPipe	1 req	Avail to order Our Price: $16.18
19	001711132	Pump Inlet Pipe & Cover	1 req	Avail to order Our Price: $1,200.94
20	008607101	Ring 72 mm Or	1 req	Current Stock: 17 Our Price: $2.00
21	008578201	O-Ring I 82 Uni 3654	1 req	Current Stock: 12 Our Price: $3.57
22	001708589	Coolant Circulation Union Pipe	4 req	Avail to order Our Price: $35.78
23	001711129	Head/Thermostat Union Pipe	1 req	Avail to order Our Price: $1,895.05
24	001711131	Thermostat Union Pipe	4 req	Avail to order Our Price: $172.42
25	008611705	Oil Seal 17x32x7 mm	1 req	Avail to order Our Price: $19.48
26	008611601	Seal	1 req	Avail to order Our Price: $65.85
27	001705854	Urraco Oil Seal ShimAdjustment	1 req	Avail to order Our Price: $228.12
28	001705860	NLA (No Longer Available)	1 req	*See Description
29	001711130	Pump Pipe	1 req	Avail to order Our Price: $748.44
30	001706751	Coolant Pump Shaft	1 req	Avail to order Our Price: $885.85
31	001706754	NLA (No Longer Available)	1 req	*See Description
32	008860402	Tab 4x4x20 Unim 92	1 req	Current Stock: 4 Our Price: $2.76
33	07M109381	Snap Ring I 35 Uni 3654	1 req	Current Stock: 35 Our Price: $2.00
34	008501701	Bearing	1 req	Avail to order Our Price: $34.89
35	008860401	Tab 4x4x12	1 req	Avail to order Our Price: $30.55
36	008581501	O-Ring E 17 Uni 7435-75	1 req	Current Stock: 16 Our Price: $2.00
37	001704296	Coolant Cap	1 req	Avail to order Our Price: $150.12
38	001708603	Nourice/Coolant PumpPipe	1 req	Avail to order Our Price: $51.36
39	001711128	Thermostat/Radiator Inlet Pipe	1 req	Avail to order Our Price: $66.87
40	008834101	Wire Clamp D. 45 mm with screw	4 req	Current Stock: 3 Our Price: $4.33
41	001709894	This item is no longer available	1 req
42	008251701	M17x1x28 Ring Nut - NLA CHECK STOCK	1 req	*See Description
43	008574301	O-Ring I 40 Uni 3654	1 req	Current Stock: 22 Our Price: $2.61
44	008612502	Oil Seal 25x42x8.5 mm	1 req	Avail to order Our Price: $19.54
45	008521701	Bearing	1 req	Avail to order Our Price: $123.67
46	008830205	Clamp	2 req	Avail to order Our Price: $7.68
47	008200804	Nut	2 req	Current Stock: 7 Our Price: $2.00
48	WHT001942	WASHER	2 req	Current Stock: 13 Our Price: $3.43
49	001701592	Radiator Shim	2 req	Avail to order Our Price: $20.14
50	001707688	POSSIBLE NLA OR NEW PART NUMBER - CONTACT SALES DEPT	1 req	*See Description
51	WHT001189	RUBBER WASHER MOUNT	2 req	Avail to order Our Price: $4.10
52	001708596	Nourice Drain Pipe	1 req	Avail to order Our Price: $35.11
53	008833502	Wire Clamp D. 40 mm with screw	18 req	Avail to order Our Price: $14.42
* Qty Req is the Quantity used on this part diagram. This does NOT mean this is how many you get, but rather how many you need to buy if you are replacing all the parts.
